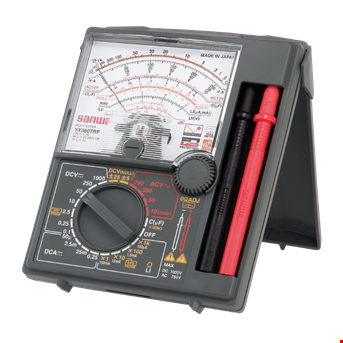

SANWA Analog Multitesters YX360TRF

Multimeter Analog

Drop shock proof meter
Null(zero center) meter ±5 / ±25 in DCV
High resistance up to 200MΩ with low voltage
Protective body cover
Capacitance, dB, Li measurement
Function : DCV,Measuring range : 0.1（20kΩ/V)
0.25/2.5/10/50（20kΩ/V)/250/1000V（9kΩ/V), Tolerance : ±5% of full scale
±3% of full scale, Function : DCV (NULL), Measuring range : ±5/25V（40kΩ/V), Tolerance : ±5% of full scale, Function : ACV, Measuring range : 10/50/250/750（9kΩ/V), Tolerance :±4% of full scale, Function : DCA, Measuring range : 50μ/2.5m/25m/0.25A, Tolerance : *1 ±3% of full scale, Function : Resistance, Measuring range : 2k/20k/200k/2MΩ (x1/x10/x100/x1k) 200MΩ (x100k), Tolerance : ±3% of arc±5% of arc,Function : Capacitance, Measuring range : 10μF, Tolerance :Approximate value, Function : dB, Measuring range :-10dB～+22dB (for 10VAC) ～+62dB, Tolerance : Approximate value, Function : Load current (LI) : Measuring range : 0-150m/15m/1.5m/150μ/1.5μA,Tolerance : Approximate value
